Model No.︰65+150+90
Brand Name︰Tianjin Tianlan
Country of Origin︰China
Unit Price︰-
Minimum Order︰-

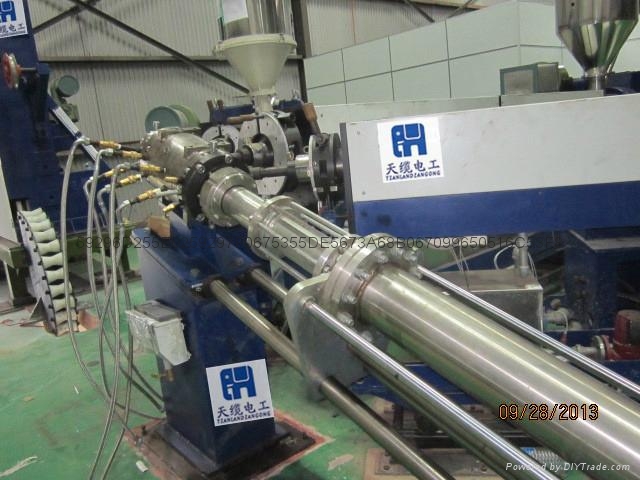

35KV Half Catenary Type Triple Co-Extrusion CCV Line
Used to produce compacted Copper,Aluminum twisted core, produce 6-35KV XLPE power cable
Voltage Grade：XLPE 6-35KV
Conductor cross area：Cu：35-630mm2
Al：50-800mm2
Max cable weight：10kg/m
Max cable diameter：75mm
Extrusion thickness：
65extruder，inner screen 0.5-2.0mm
150extruder，insulation 2.5-10.5mm
90extruder，insulation screen 0.5-2.0mm
Curing Tube：36m (6m*6tube)
Precooling Tube：12m (6m*2tube)
Cooling Tube：54m (6m*9tube)
Tube total length：102m
Extruder platform size：（L*W）24m*18m
Extruder platform height：10m
Factory length：130m
Nitrogen：Pressure 2.0-2.5Mpa，Purity 99.5%
Consumption 0.4-1.8m3/h,one 5m3 nitrogen tank
Cooling water：Pressure 0.2-2Mpa,Consumption 12.5m3/h
Compressed air：Pressure 0.6-0.8Mpa,Consumption 0.8m3/h
Installation Capacity：750KVA
Power：380V,50Hz,3 Phase 5 Wire
Electric Control System with SIEMENS integrated industry control Computer，SIMATIC PENEL PC677 15"TOUCH type，connect PROFIBUS.
Temperature control system with SIEMENS PLC,SIEMENS S7-300 CPU.
Synchronization Drive System controlled by PARKER 590.
